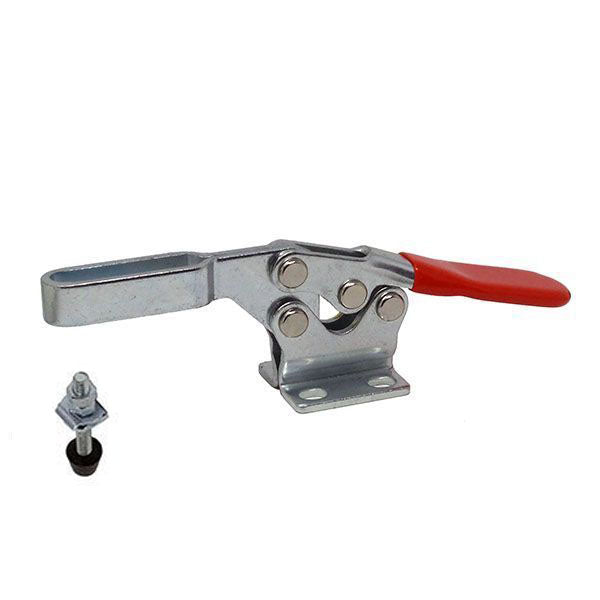

Part No: HH-225D
Holding Capacity: 500 lbs
Cross Referenced: 225-U, CL-450-HTC, 5128A22, 73952541, 76988625

Horizontal Hold Down, U shaped clamping bar, Flanged base. Overall Height 1.87 In, Overall Length 6.60 In, Height Under Arm 1.37 In.

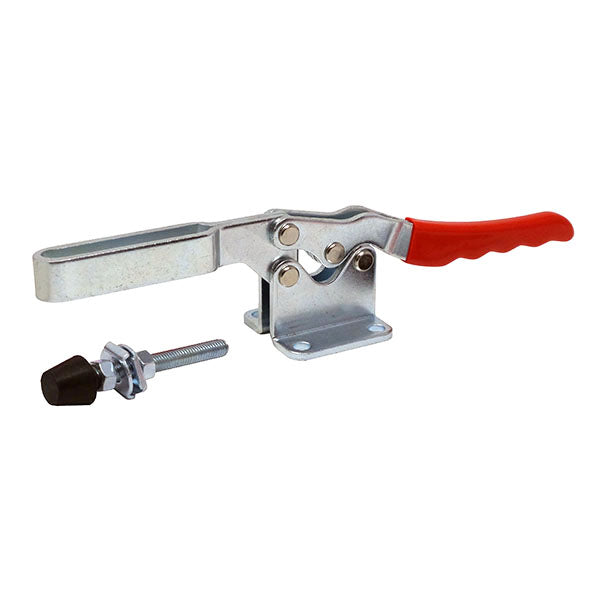

Part No: HH-20235
Holding Capacity: 750 lbs
Cross Referenced: 235-U, CL-550-HTC, 5128A24, 73952491, 76988807

Heavy duty horizontal hold down clamp, U shaped clamping bar, Flanged base. Overall Height 2.58 In, Overall Length 10.53 In, Height Under Arm 1.83 In.

Part No: HH-20820
Holding Capacity: 375 lbs
Cross Referenced: 317-U, CL-475-HTC, 50225A12, 77864569, 08096323

Extra-wide-opening Clamp, U-shaped clamping bar, Dual Flanged base.

Part No: HH-225DSS
Holding Capacity: 500 lbs
Cross Referenced: 225-USS, CL-450-HTC-S, 5128A54, 73952707, 76988641

Stainless Steel, Horizontal Hold Down, U shaped clamping bar, Flanged base. Overall Height 1.87 In, Overall Length 6.60 In, Height Under Arm 1.37 In.

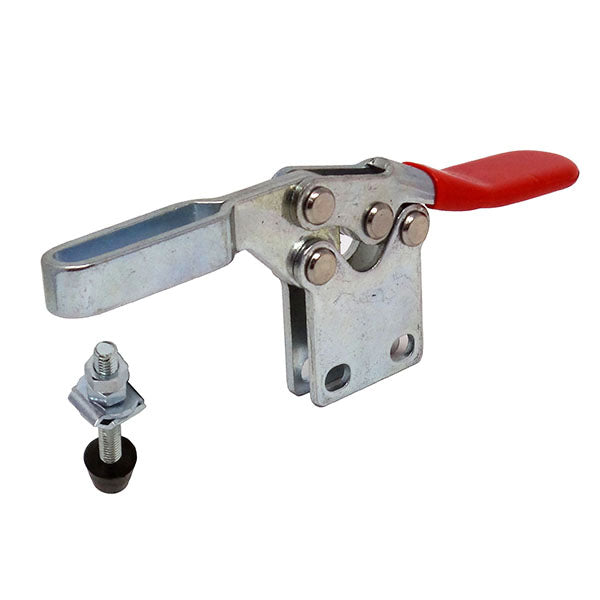

Part No: HH-225DI
Holding Capacity: 500 lbs
Cross Referenced: 225-UB, CL-451-HTC, 2495N24, 99524506

Horizontal Hold Down, U shaped clamping bar, Straight base. Overall Height 2.38 In, Overall Length 6.60 In, Height Under Arm 1.88 In.

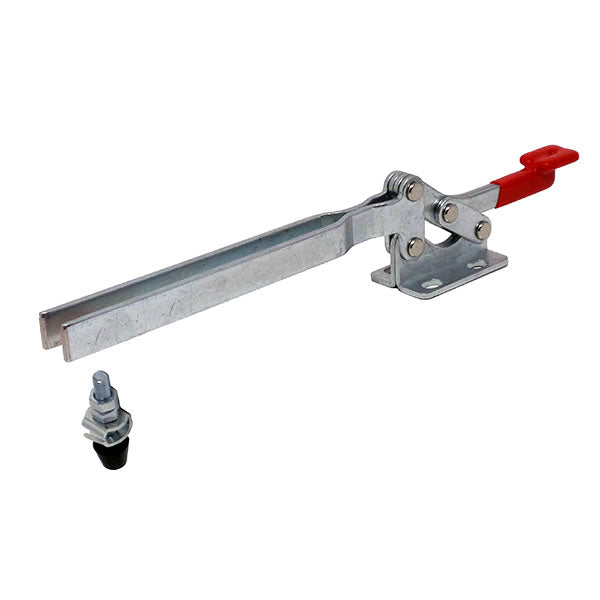

Part No: HH-22185
Holding Capacity: 550 lbs

Horizontal Hold Down toggle clamp, Long U-shaped clamping bar, Flanged base. Overall Height 1.95 In, Overall Length 11.00 In, Height Under Arm 1.13 In.

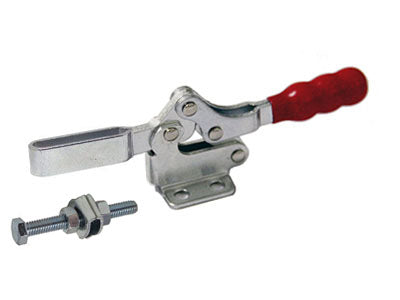

Part No: HH-21502
Holding Capacity: 330 lbs

Horizontal Hold-Down, U-shaped clamping bar, Flanged base. Overall Height 2.08 In, Overall Length 6.67 In, Height Under Arm 1.00 In.

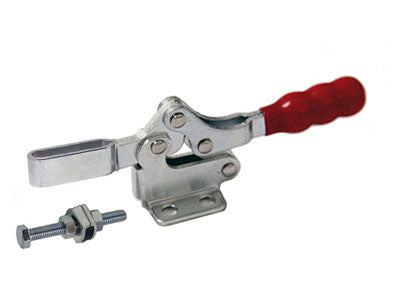

Part No: HH-20752
Holding Capacity: 165 lbs
Cross Referenced: CL-260-HTC

Horizontal Hold-Down, U-shaped clamping bar, Flanged base. Overall Height 1.51 In, Overall Length 4.36 In, Height Under Arm 0.75 In.

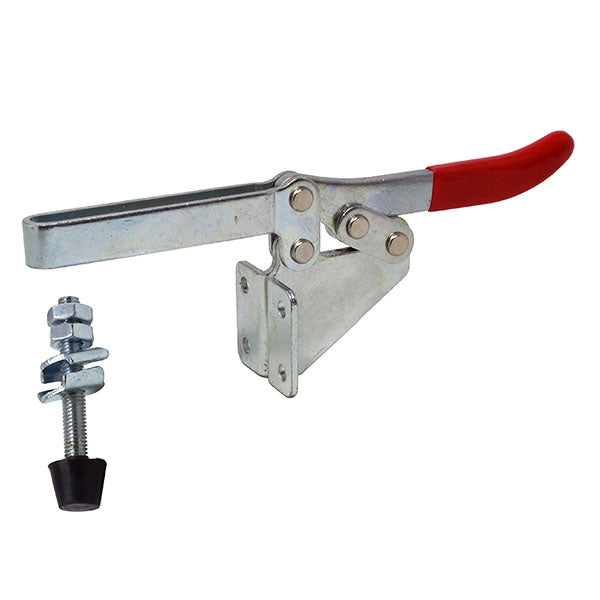

Part No: HH-202FL
Holding Capacity: 500 lbs

Horizontal Hold-Down, U-shaped clamping bar, Side mounted base. Overall Height 2.93 In, Overall Length 9.30 In, Height Under Arm 2.30 In.

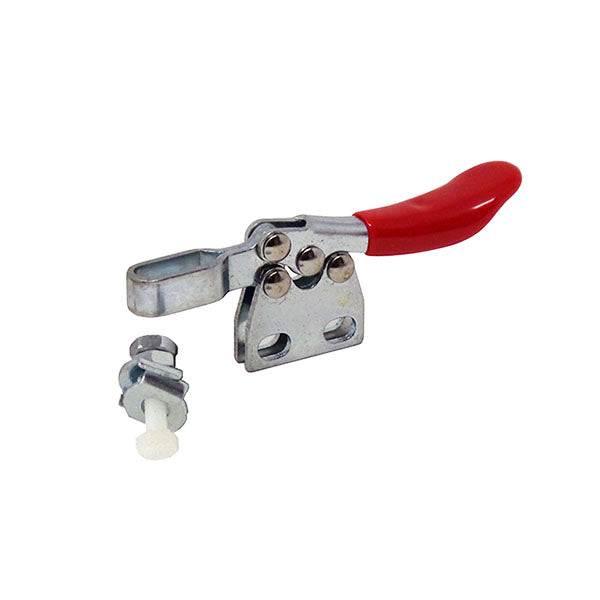

Part No: HH-201I
Holding Capacity: 60 lbs
Cross Referenced: 205-UB, CL-251-HTC, 2495N21, 73952590, 64825383

Smallest hold down toggle clamp, U Shaped clamping bar, Straight base. Overall Height 0.91 In, Overall Length 3.02 In, Height Under Arm 0.65 In.

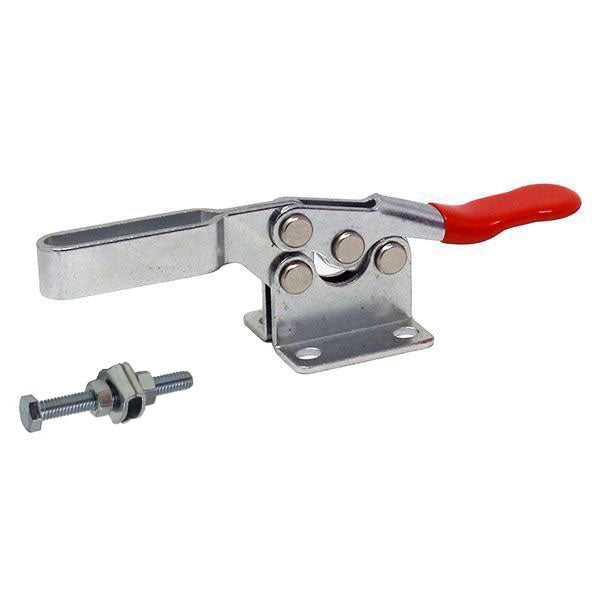

Part No: HH-201BSS
Holding Capacity: 200 lbs
Cross Referenced: 215-USS, CL-350-HTC-S, 5128A46, 73952673, 76988427

Stainless Steel, Medium duty hold down clamp, U shaped clamping bar, Flanged base. Overall Height 1.50 In, Overall Length 5.50 In, Height Under Arm 1.00 In.

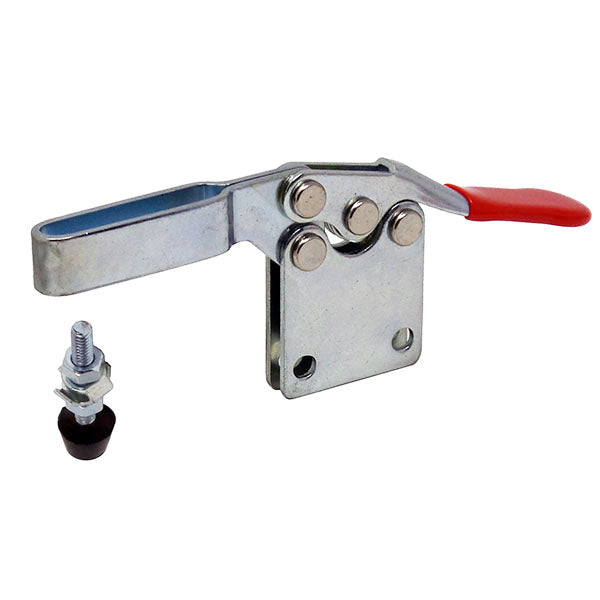

Part No: HH-201BI
Holding Capacity: 200 lbs
Cross Referenced: 215-UB, CL-351-HTC, 2495N23, 73952582, 95105698

Medium duty hold down clamp, U shaped clamping bar, Straight base. Overall Height 1.94 In, Overall Length 5.50 In, Height Under Arm 1.44 In.

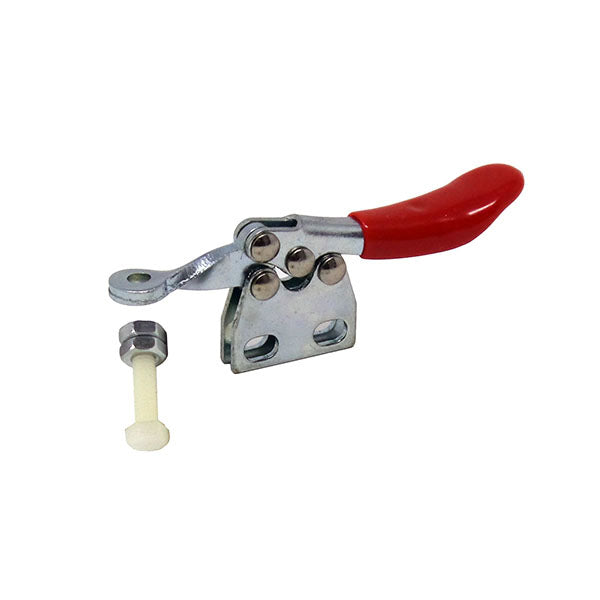

Part No: HH-201AI
Holding Capacity: 60 lbs
Cross Referenced: 205-SB, CL-151-HTC, 73952558, 64825375

Smallest hold down toggle clamp, Solid clamping bar, Straight base. Overall Height 0.84 In, Overall Length 3.12 In, Height Under Arm 0.72 In.

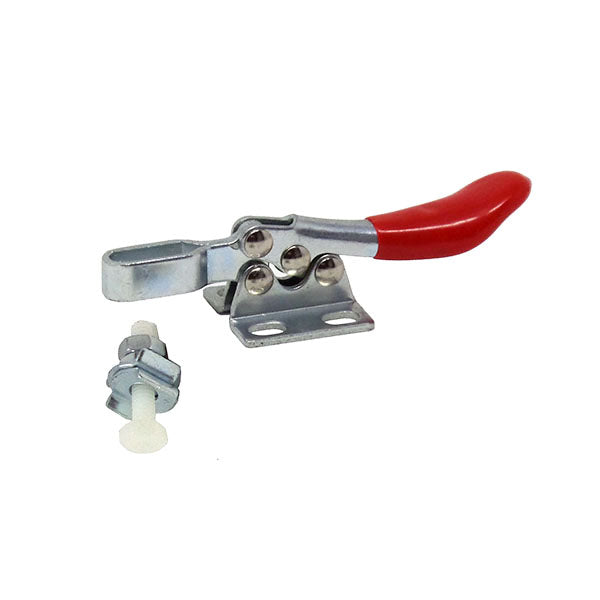

Part No: HH-201
Holding Capacity: 60 lbs
Cross Referenced: 205-U, CL-250-HTC, 5128A62, 73952517, 76988104

Smallest hold down toggle clamp, U Shaped clamping bar, Flanged base. Overall Height 0.67 In, Overall Length 3.02 In, Height Under Arm 0.30 In.

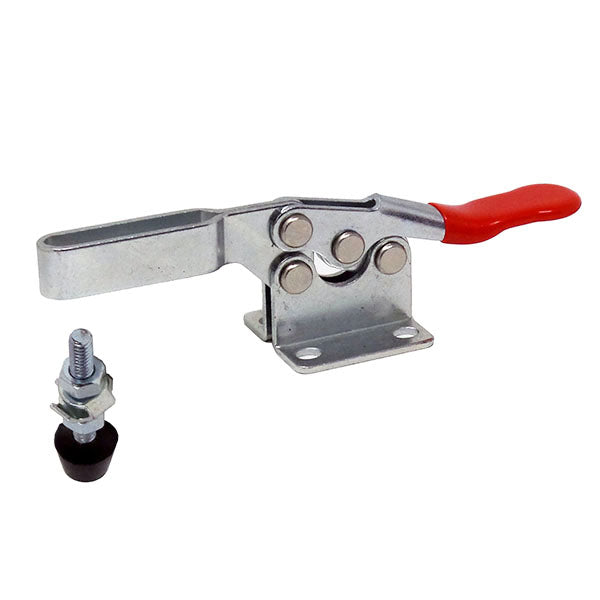

Part No: HH-201B
Holding Capacity: 200 lbs
Cross Referenced: 215-U, CL-350-HTC, 5128A17, 73952533, 76988187

Medium duty hold down clamp, U shaped clamping bar, Flanged base. Overall Height 1.50 In, Overall Length 5.50 In, Height Under Arm 1.00 In.

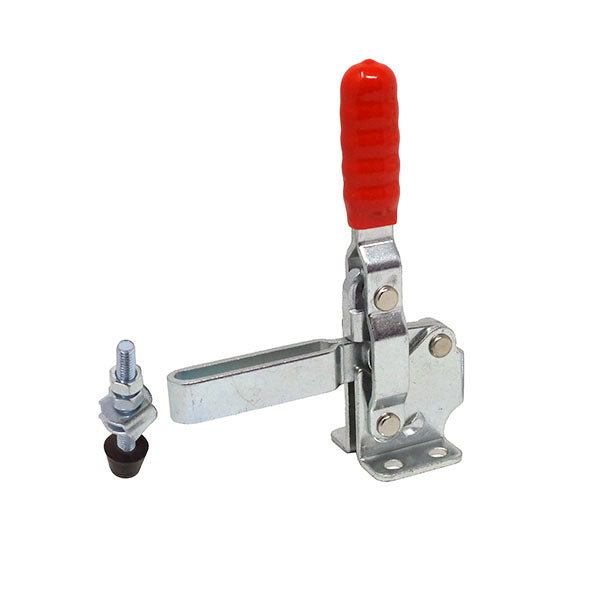

Part No: VH-12130
Holding Capacity: 500 lbs
Cross Referenced: 207-U, CL-450-VTC, 5126A67, 77864254, 76988500, 93153773

Vertical Hold Down, U shaped clamping bar, Flanged base. Overall Height 5.56 In, Overall Length 4.60 In, Height Under Arm 1.25 In.

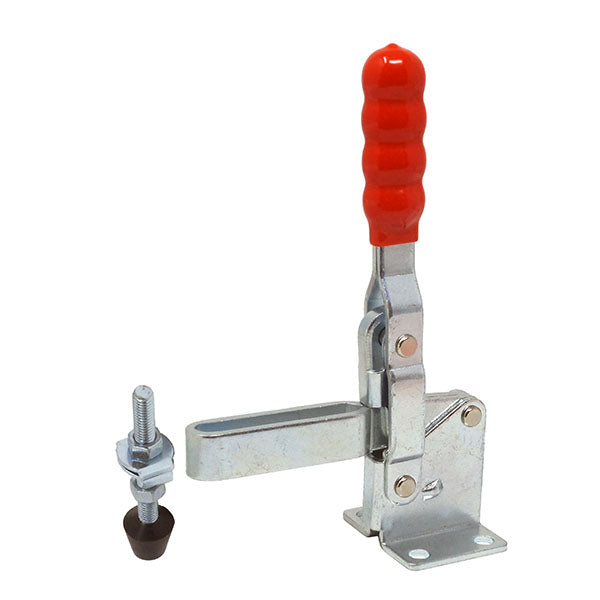

Part No: VH-12265
Holding Capacity: 750 lbs
Cross Referenced: 210-U, CL-650-VTC, 77864270, 76988708, 44003242

Large heavy duty vertical hold down clamp, U shaped clamping bar, Flanged base. Overall Height 7.90 In, Overall Length 5.52 In, Height Under Arm 1.73 In.

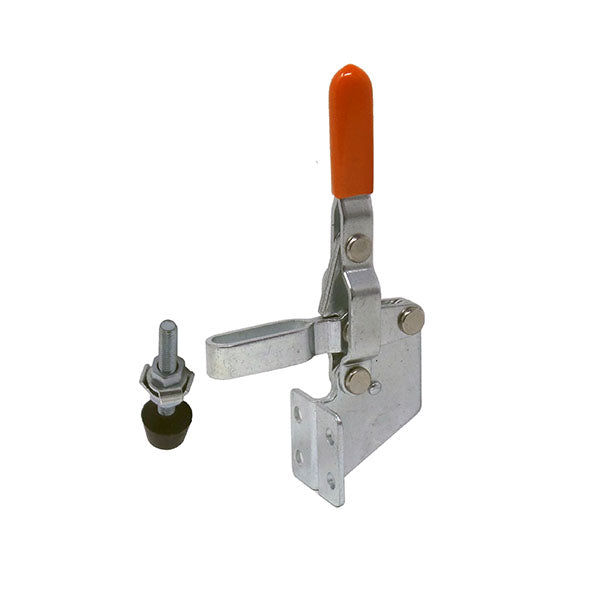

Part No: VH-101B
Holding Capacity: 220 lbs

Side Mount hold down toggle clamp, U shaped clamping bar. Overall Height 4.65 In, Overall Length 2.68 In, Height Under Arm 1.75 In.

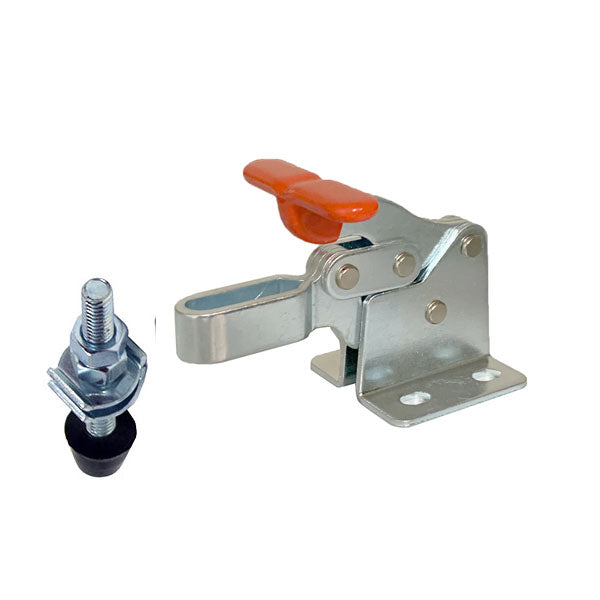

Part No: VH-13008
Holding Capacity: 700 lbs
Cross Referenced: 309-U, CL-500-VTC, 5004A15, 84520477, 08096331

Unique finger grip T handle, Extremely compact design, U shaped clamping bar, Flanged base. Overall Height 3.47 In, Overall Length 5.29 In, Height Under Arm 1.31 In.

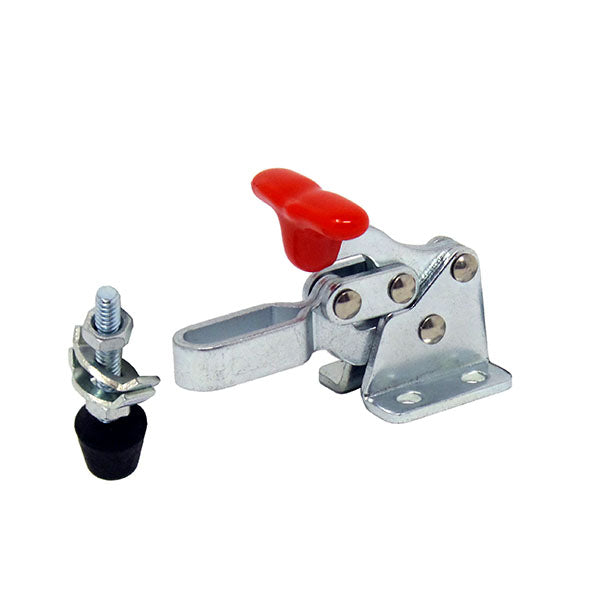

Part No: VH-13005
Holding Capacity: 150 lbs
Cross Referenced: 305-U, CL-200-VTC, 5004A11, 76988955, 08096307

Unique finger grip T handle, Extremely compact design, U shaped clamping bar, Flanged base. Overall Height 1.40 In, Overall Length 2.26 In, Height Under Arm 0.52 In.

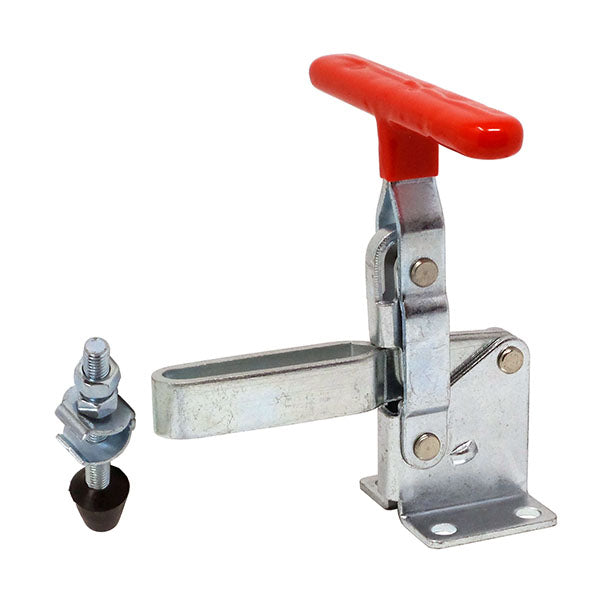

Part No: VH-12285
Holding Capacity: 750 lbs
Cross Referenced: 210-TU, CL-652-VTC, 77864338, 64825839

Large heavy duty vertical hold down clamp, T handle, U shaped clamping bar, Flanged base. Overall Height 6.02 In, Overall Length 5.52 In, Height Under Arm 1.73 In.

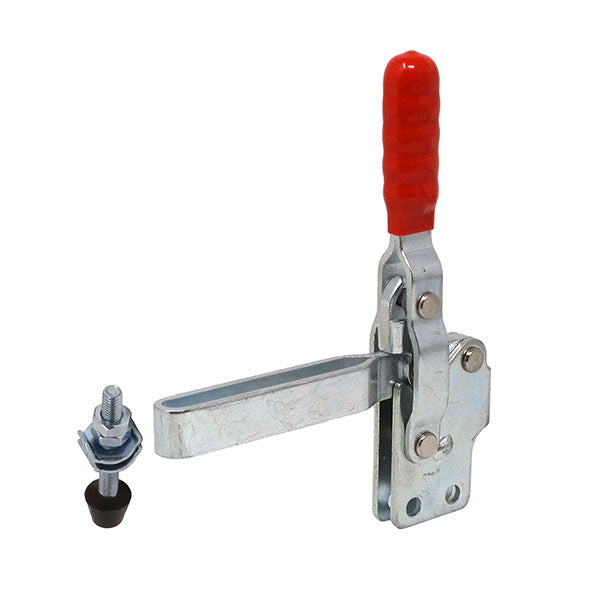

Part No: VH-12137
Holding Capacity: 500 lbs
Cross Referenced: 207-ULB, CL-451-VTC-L, 99196917

Vertical Hold Down, Long U shaped clamping bar, Straight base. Overall Height 6.10 In, Overall Length 5.48 In, Height Under Arm 1.80 In.

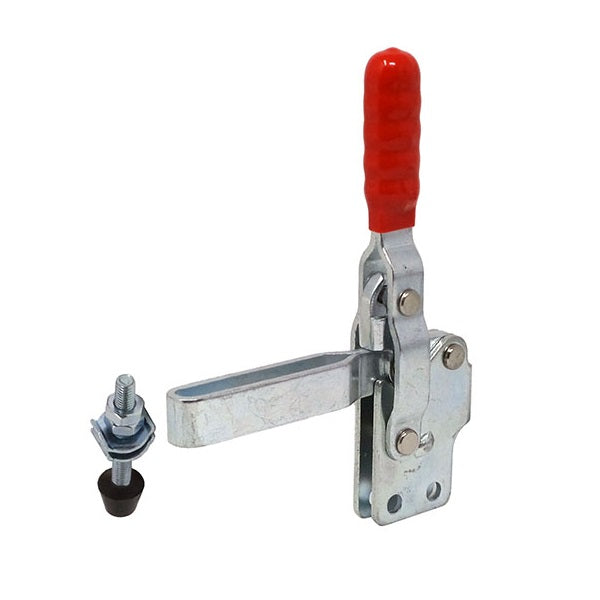

Part No: VH-12135
Holding Capacity: 500 lbs
Cross Referenced: 207-UB, CL-451-VTC, 84520493, 76988534, 07302656

Vertical Hold Down, U shaped clamping bar, Straight base. Overall Height 6.10 In, Overall Length 4.60 In, Height Under Arm 1.80 In.

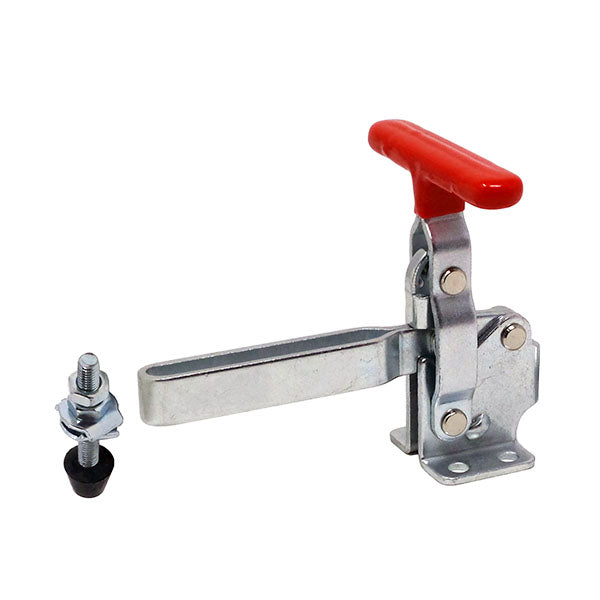

Part No: VH-12133
Holding Capacity: 500 lbs
Cross Referenced: 207-TUL

Vertical Hold Down, T Handle, Long U shaped clamping bar, Flanged base. Overall Height 4.33 In, Overall Length 5.48 In, Height Under Arm 1.25 In.

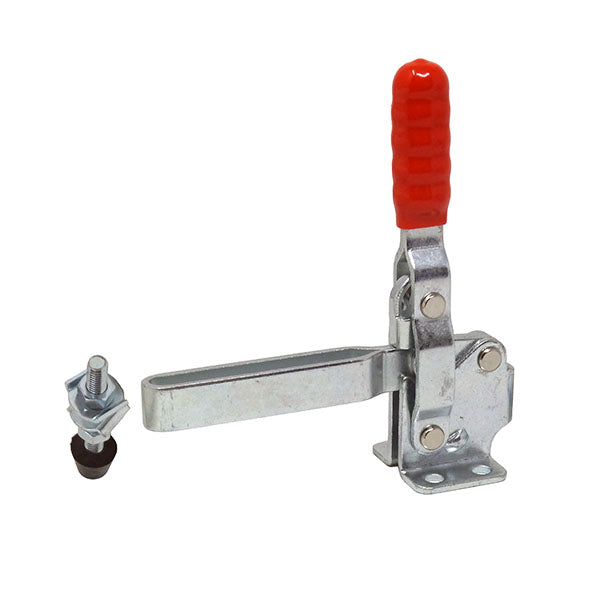

Part No: VH-12132
Holding Capacity: 500 lbs
Cross Referenced: 207-UL, CL-453-VTC, 5126A66, 77864262, 76988559

Vertical Hold Down, Long U shaped clamping bar, Flanged base. Overall Height 5.56 In, Overall Length 5.48 In, Height Under Arm 1.25 In.

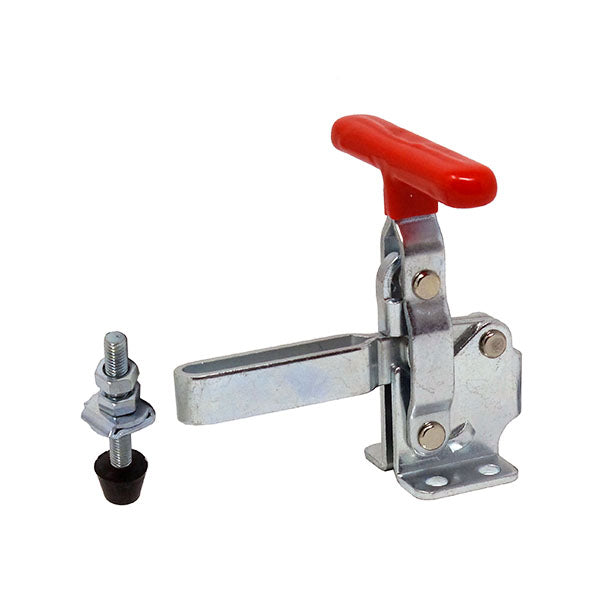

Part No: VH-12131
Holding Capacity: 500 lbs
Cross Referenced: 207-TU, CL-452-VTC, 77864320, 76988526

Vertical Hold Down, T handle, U shaped clamping bar, Flanged base. Overall Height 4.33 In, Overall Length 4.60 In, Height Under Arm 1.25 In.

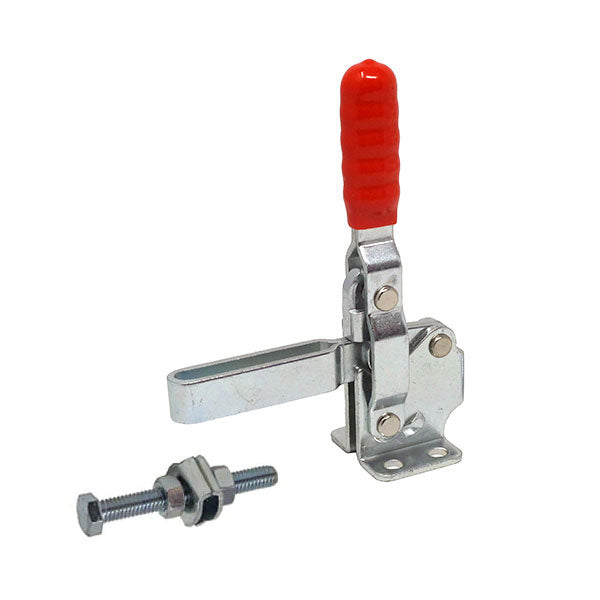

Part No: VH-12130SS
Holding Capacity: 500 lbs
Cross Referenced: 207-USS, CL-450-VTC-S, 5126A49, 77864536, 76988518, 65589608

Stainless Steel, Vertical Hold Down, U shaped clamping bar, Flanged base. Overall Height 5.56 In, Overall Length 4.60 In, Height Under Arm 1.25 In.

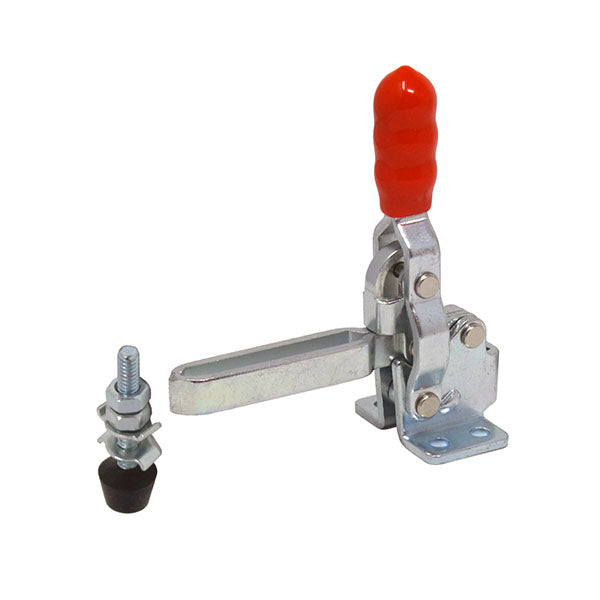

Part No: VH-12050UL
Holding Capacity: 200 lbs
Cross Referenced: 202-UL, CL-253-VTC, 5126A65, 77864510, 03859980

Small vertical hold down Clamp, Long U shaped clamping bar, Flanged base. Overall Height 3.85 In, Overall Length 3.65 In, Height Under Arm 0.88 In.

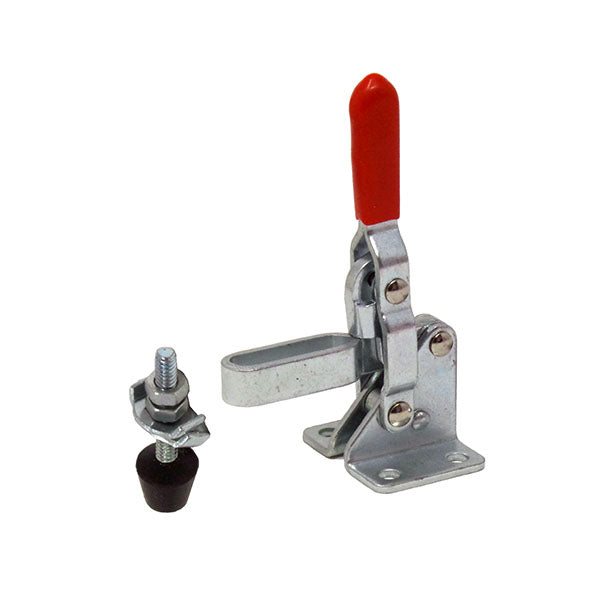

Part No: VH-101A
Holding Capacity: 110 lbs
Cross Referenced: 201-U, CL-150-VTC, 5126A24, 77864288, 76988146

Smallest vertical hold down toggle clamp, U shaped clamping bar, Flanged base. Overall Height 3.00 In, Overall Length 2.00 In, Height Under Arm 0.76 In.

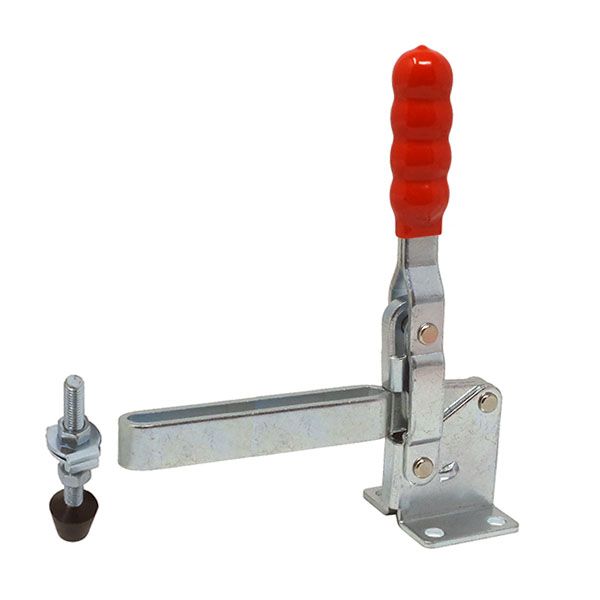

Part No: VH-12265L
Holding Capacity: 750 lbs

Large heavy duty vertical hold down clamp, long U shaped clamping bar, Flanged base. Overall Height 7.90 In, Overall Length 9.02 In, Height Under Arm 1.73 In.

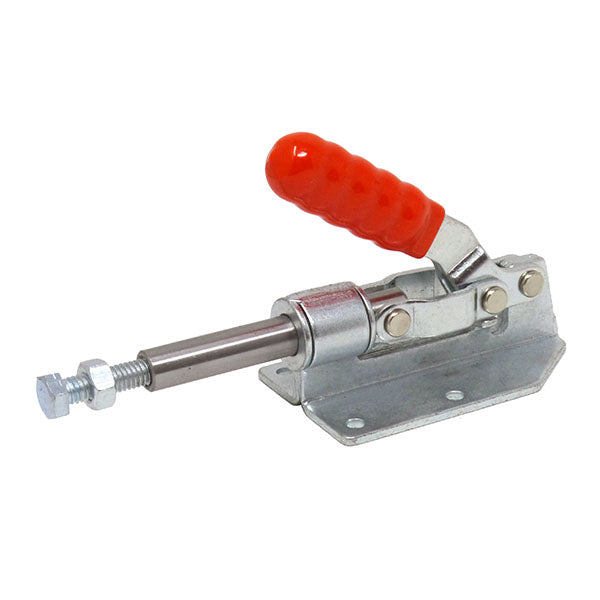

Part No: PP-36092
Holding Capacity: 300 lbs
Cross Referenced: 609, 5093A57, 73953044, 06966477

Medium size clamp that locks in extended or retracted position. Overall Height 3.25 In, Overall Length 5.49 In, Plunger Travel 1.25 In.

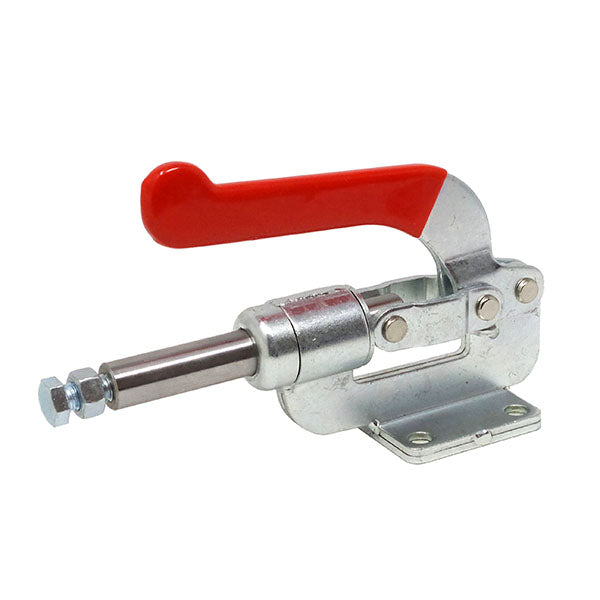

Part No: PP-36010
Holding Capacity: 800 lbs
Cross Referenced: 610, CL-250-SPC, 5093A11, 73953150, 06966501

Heavier clamp with extra plunger height that locks in extended or retracted position. Overall Height 4.70 In, Overall Length 6.76 In, Plunger Travel 1.63 In.

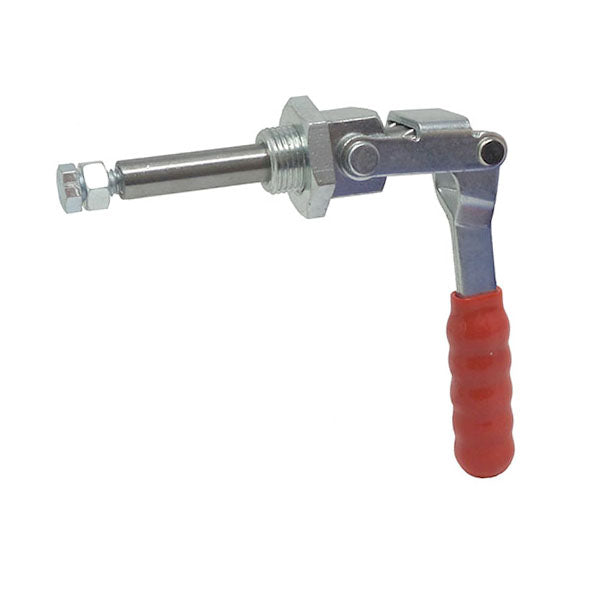

Part No: PP-36204
Holding Capacity: 300 lbs
Cross Referenced: 604, CL-250-TPC, 5093A63, 73953077, 06966204

Compact plunger clamp for mounting through panels, plates, or angle brackets. Overall Height 4.18 In, Overall Length 4.29 In, Plunger Travel 1.50 In.

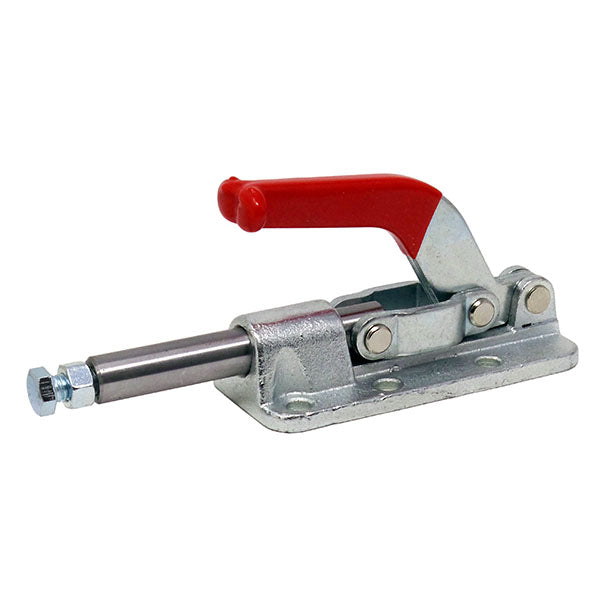

Part No: PP-36330
Holding Capacity: 2500 lbs
Cross Referenced: 630, CL-350-PC, 5093A59, 73953010, 06966550

Compact heavy duty plunger clamp with lower profile handle, locks in extended or retracted position. Overall Height 3.00 In, Overall Length 7.00 In, Plunger Travel 2.00 In.

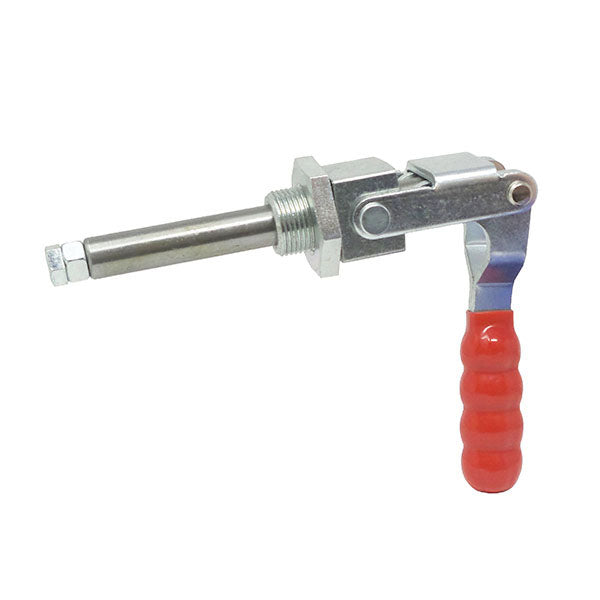

Part No: PP-36224
Holding Capacity: 700 lbs
Cross Referenced: 624, CL-350-TPC, 5093A64, 73953093, 06966253

Compact plunger clamp for mounting through panels, plates, or angle brackets. Overall Height 5.62 In, Overall Length 6.77 In, Plunger Travel 2.63 In.

Part No: PP-36204SS
Holding Capacity: 300 lbs
Cross Referenced: 604-SS, CL-250-TPC-S, 5093A69, 75135129, 06966212

Stainless Steel, Compact plunger clamp for mounting through panels, plates, or angle brackets. Overall Height 4.06 In, Overall Length 4.53 In, Plunger Travel 1.50 In.

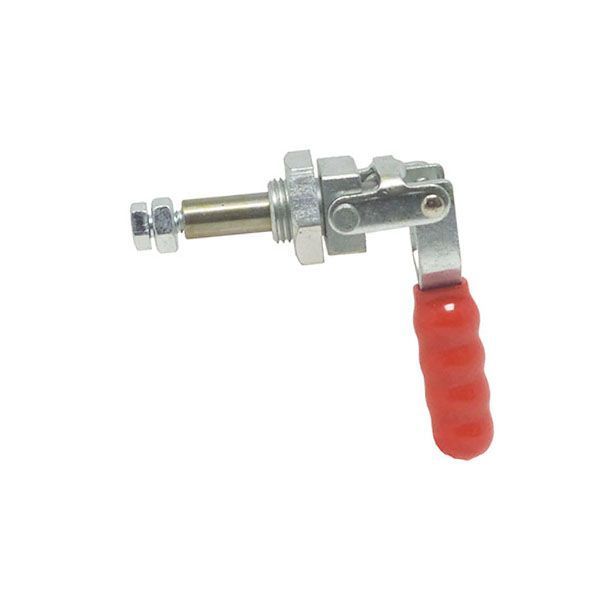

Part No: PP-36202SS
Holding Capacity: 200 lbs
Cross Referenced: 602-SS, CL-150-TPC-S, 5093A72, 73953135, 06966170

Stainless Steel, Compact plunger clamp for mounting through panels, plates, or angle brackets. Overall Height 2.97 In, Overall Length 2.48 In, Plunger Travel 0.75 In.

Part No: PP-36202
Holding Capacity: 200 lbs
Cross Referenced: 602, CL-150-TPC, 5093A56, 73953051, 06966154

Compact plunger clamp for mounting through panels, plates, or angle brackets. Overall Height 3.24 In, Overall Length 2.48 In, Plunger Travel 0.75 In.

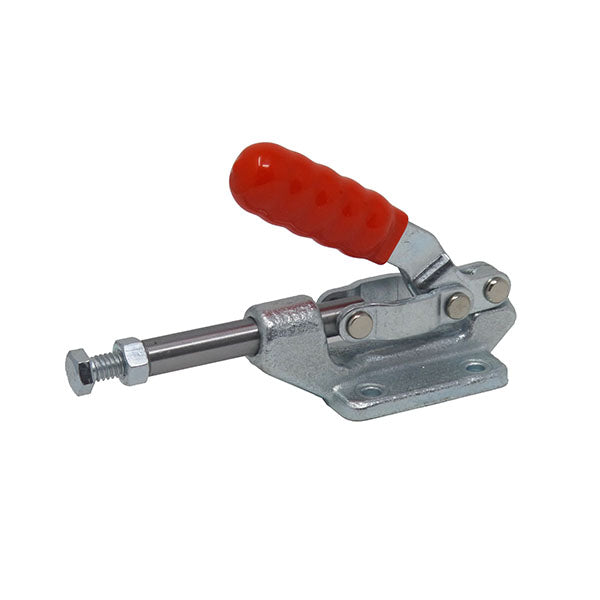

Part No: PP-36003
Holding Capacity: 600 lbs
Cross Referenced: 603, 5093A58, 73952970, 06966303

Low profile plunger clamp, locks in extended or retracted position. Overall Height 3.34 In, Overall Length 4.77 In, Plunger Travel 1.25 In.

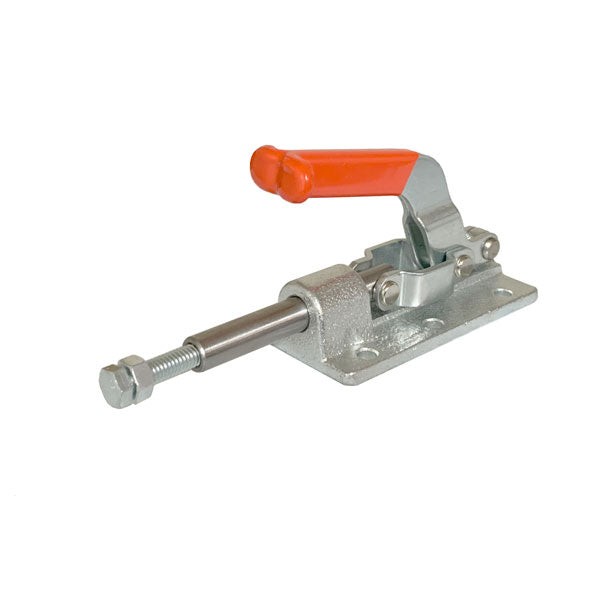

Part No: PP-30607
Holding Capacity: 700 lbs
Cross Referenced: 607, 5093A65, 73953002, 06966451

Low profile plunger clamp, locks in extended or retracted position. Overall Height 3.30 In, Overall Length 6.03 In, Plunger Travel 1.63 In.

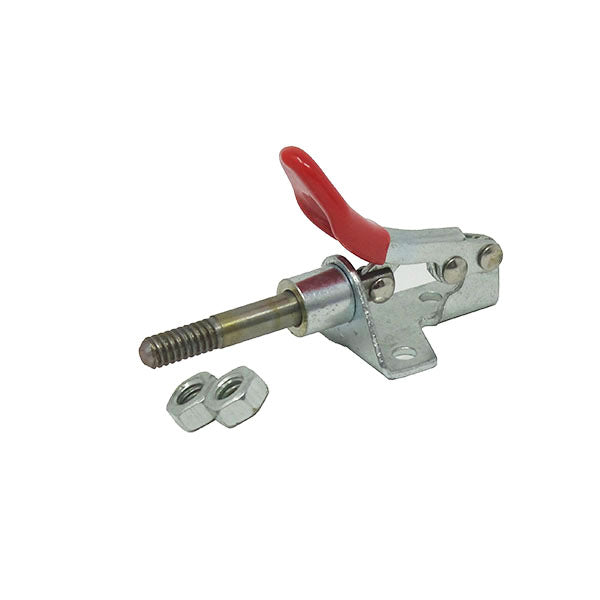

Part No: PP-301B
Holding Capacity: 100 lbs
Cross Referenced: 601-O, CL-51-SPC, 5093A54, 73952947, 64825565

Light duty plunger clamp that locks in extended or retracted position. Overall Height 1.70 In, Overall Length 2.84 In, Plunger Travel 0.63 In.

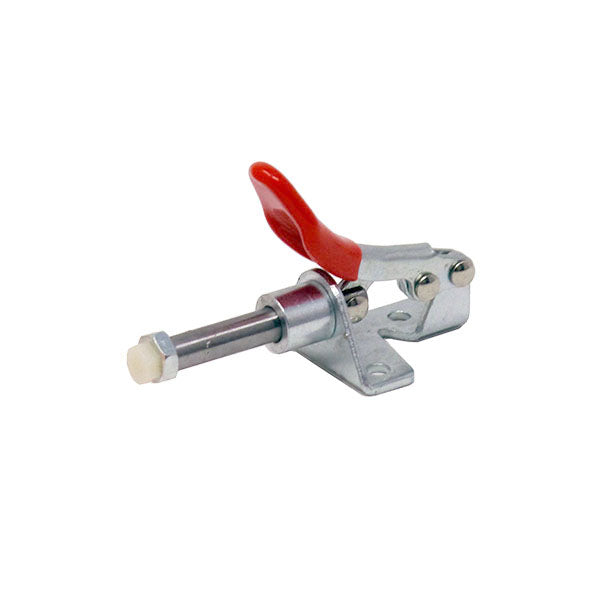

Part No: PP-301A
Holding Capacity: 100 lbs
Cross Referenced: 601, CL-50-SPC, 5093A55, 73952921, 06966105

Light duty plunger clamp that locks in extended or retracted position. Overall Height 1.70 In, Overall Length 2.68 In, Plunger Travel 0.63 In.

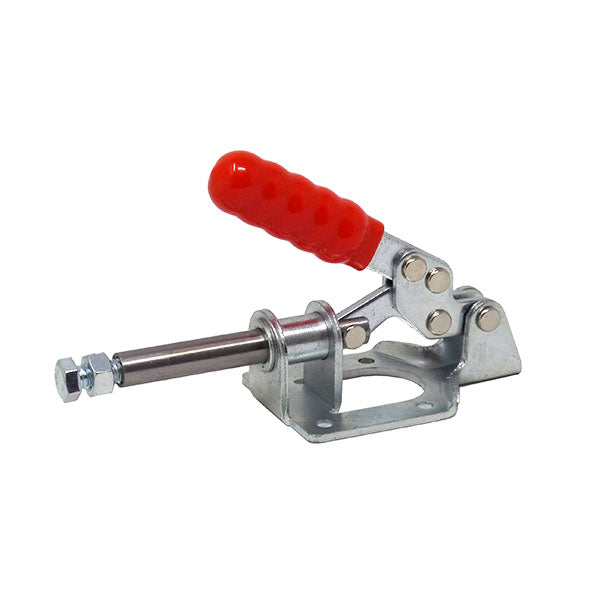

Part No: PP-302F
Holding Capacity: 300 lbs
Cross Referenced: 605, CL-150-SPC, 5093A84, 73952962, 06966352

Medium size clamp that locks in extended or retracted position. Overall Height 3.21 In, Overall Length 5.51 In, Plunger Travel 1.25 In.

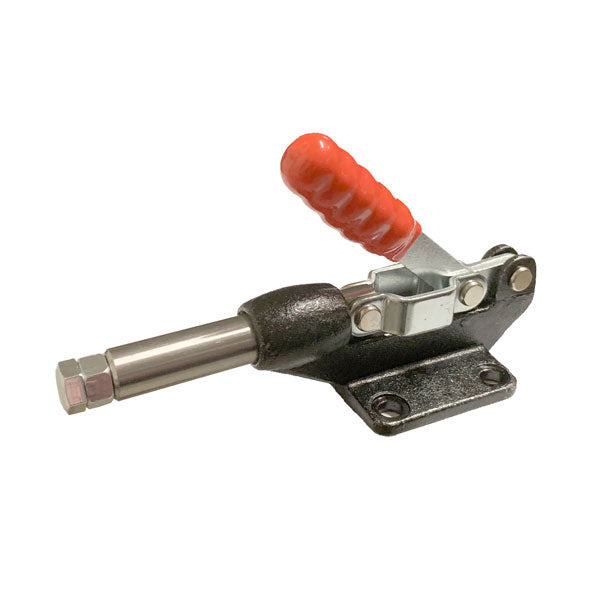

Part No: PP-304E
Holding Capacity: 850 lbs
Cross Referenced: 608, CL-200-PC, 5093A67, 73952996, 06966469

Heavier clamp that locks in extended or retracted position. Overall Height 3.74 In, Overall Length 6.16 In, Plunger Travel 1.65 In.

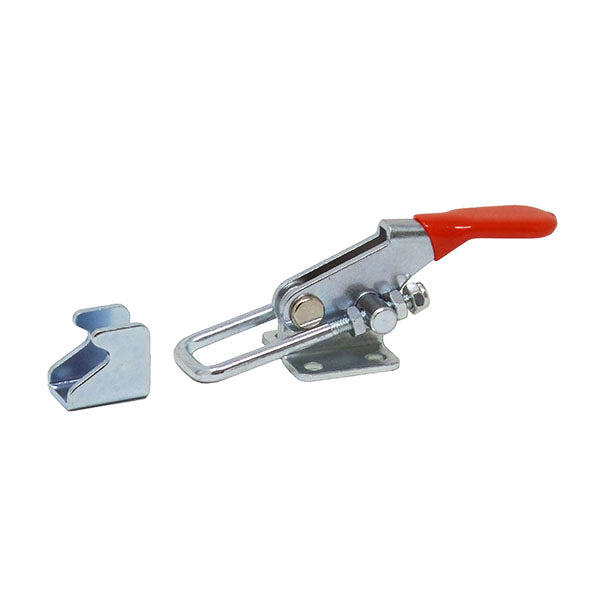

Part No: LT-40323
Holding Capacity: 360 lbs
Cross Referenced: 323, CL-100-PA, 5071A51, 77863868, 06966709

Miniature Latch clamp with a threaded U bolt for adjustability. Drawing Movement 1.19 In.

Part No: LT-431
Holding Capacity: 700 lbs
Cross Referenced: 331, CL-200-PA, 5071A52, 77863876, 06966758

Latch clamp with a threaded U bolt for adjustability. Drawing Movement 2.00 In.

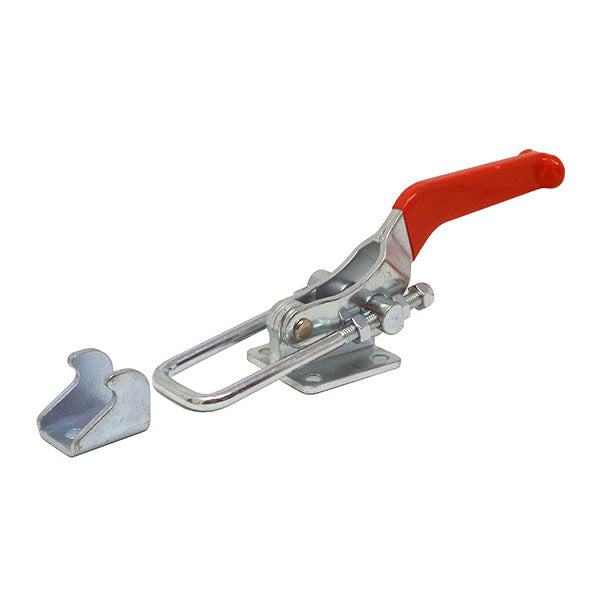

Part No: LT-40341
Holding Capacity: 2000 lbs
Cross Referenced: 341, CL-300-PA, 5071A53, 77863884, 06966808

Latch clamp with a threaded U bolt for adjustability. Drawing Movement 2.50 In.

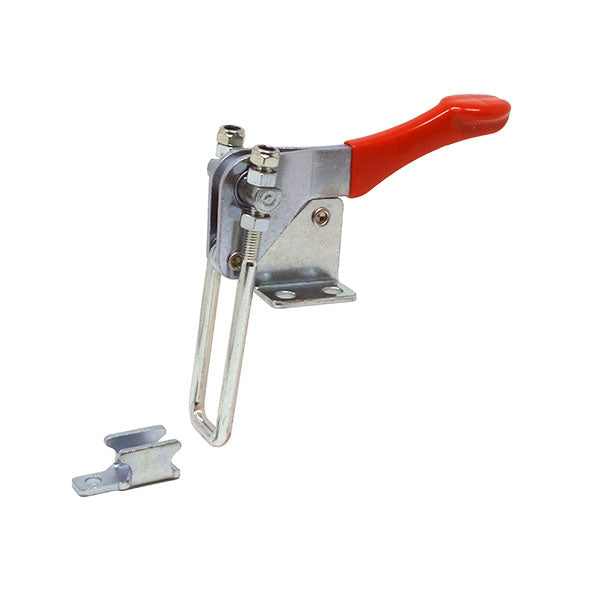

Part No: LT-40334
Holding Capacity: 1000 lbs
Cross Referenced: 334, CL-210-PA, 5135A25, 77863942, 06966774

Latch clamp with a threaded U bolt for adjustability. Drawing Movement 2.06 In.

Part No: LT-40344
Holding Capacity: 2000 lbs
Cross Referenced: 344, CL-310-PA, 5135A27, 77863959, 06966790

Latch clamp with a threaded U bolt for adjustability. Drawing Movement 1.50 In.

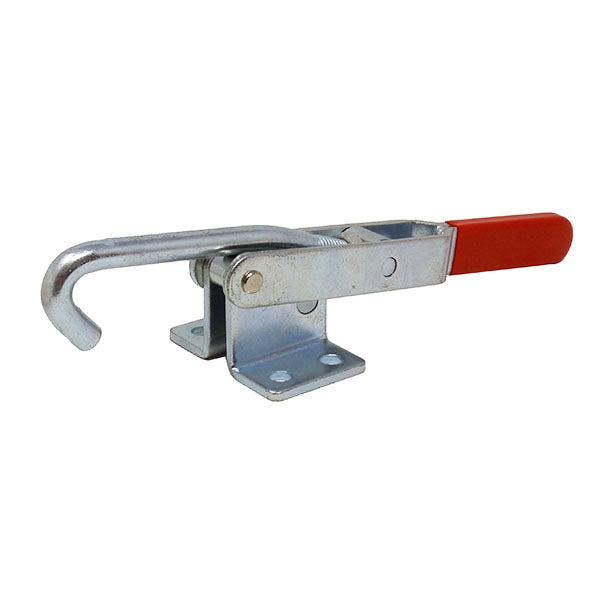

Part No: LT-43810
Holding Capacity: 1000 lbs
Cross Referenced: 381, CL-350-PA, 5136A15, 77863827, 06966998

Latch clamp with a hook for grasping a rod or rim. Drawing Movement 6.13 In.

Part No: LT-40324SS
Holding Capacity: 500 lbs
Cross Referenced: 324-SS, CL-110-PA-S, 5135A33, 77863710, 06966725

Stainless Steel, Latch clamp with a threaded U bolt for adjustability. Drawing Movement 1.50 In.

Part No: LT-40334SS
Holding Capacity: 1000 lbs
Cross Referenced: 334-SS, CL-210-PA-S, 5135A35, 77863751, 06966782

Stainless Steel, Latch clamp with a threaded U bolt for adjustability. Drawing Movement 2.06 In.

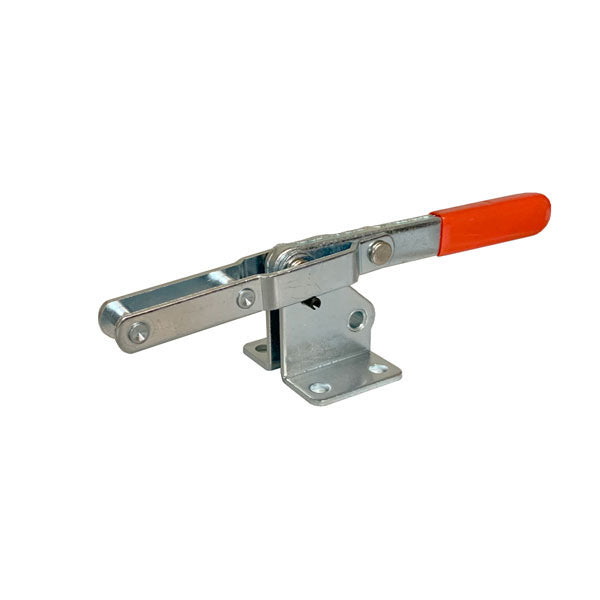

Part No: LT-43311
Holding Capacity: 1200 lbs
Cross Referenced: 311, 5138A23, 77863694, 03583788

Latch clamp with a fixed reach and adjustable stop. Drawing Movement 3.35 In.

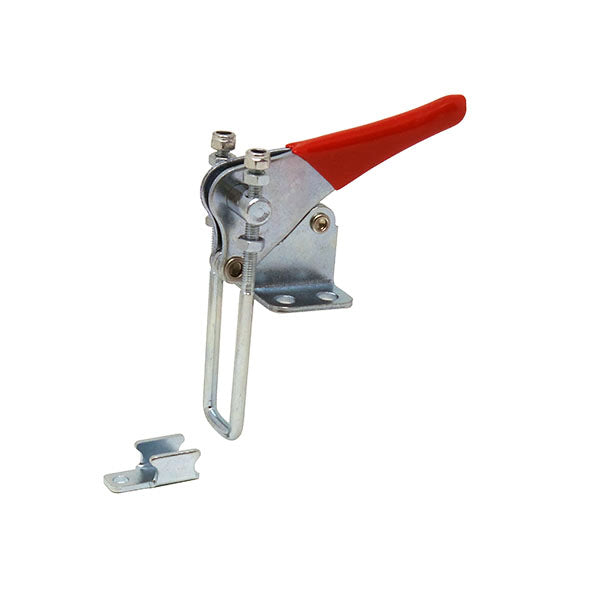

Part No: LT-40324
Holding Capacity: 500 lbs
Cross Referenced: 324, CL-110-PA, 5135A23, 77863934, 06966717

Latch clamp with a threaded U bolt for adjustability. Drawing Movement 1.50 In.

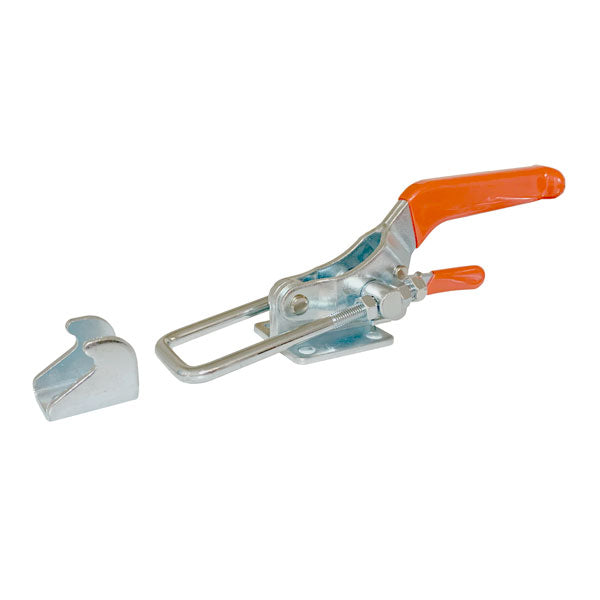

Part No: LT-40341R
Holding Capacity: 2000 lbs

Latch clamp with a threaded U bolt for adjustability. Drawing Movement 2.50 In.

Part No: LT-40341SS
Holding Capacity: 2000 lbs
Cross Referenced: 341-SS, CL-300-PA-S, 5071A59, 77863769, 06966824

Stainless Steel, Latch clamp with a threaded U bolt for adjustability. Drawing Movement 2.50 In.

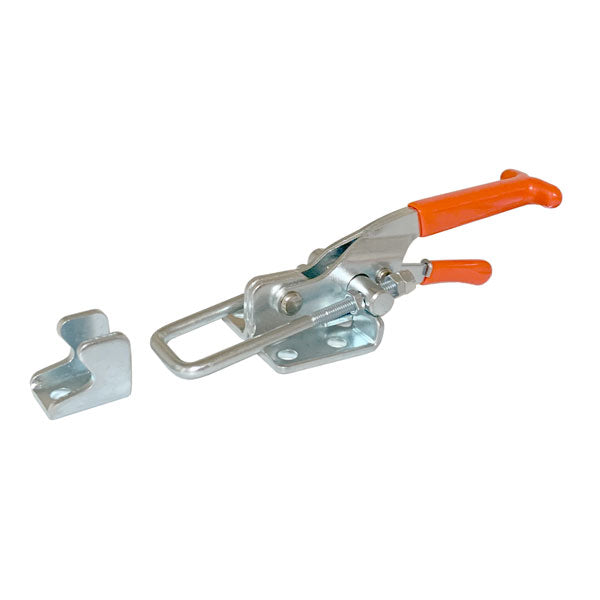

Part No: LT-431R
Holding Capacity: 700 lbs

Latch clamp with a threaded U bolt for adjustability. Drawing Movement 2.00 In.

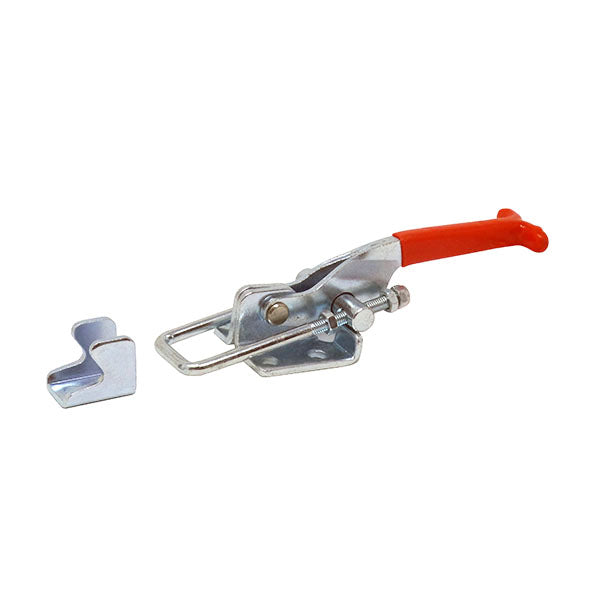

Part No: LT-431SS
Holding Capacity: 700 lbs
Cross Referenced: 331-SS, CL-200-PA-S, 5071A58, 77863744, 06966766

Stainless Steel, Latch clamp with a threaded U bolt for adjustability. Drawing Movement 2.00 In.

Part No: LT-451
Holding Capacity: 375 lbs
Cross Referenced: 351, CL-250-PA, 5136A13, 77863900, 06966956

Latch clamp with a hook for grasping a rod or rim. Drawing Movement 4.00 In.

Part No: LT-431SS
Holding Capacity: 700 lbs
Cross Referenced: 331-SS, CL-200-PA-S, 5071A58, 77863744, 06966766

Stainless Steel, Latch clamp with a threaded U bolt for adjustability. Drawing Movement 2.00 In.

Part No: LT-40341SS
Holding Capacity: 2000 lbs
Cross Referenced: 341-SS, CL-300-PA-S, 5071A59, 77863769, 06966824

Stainless Steel, Latch clamp with a threaded U bolt for adjustability. Drawing Movement 2.50 In.

Part No: VH-12130SS
Holding Capacity: 500 lbs
Cross Referenced: 207-USS, CL-450-VTC-S, 5126A49, 77864536, 76988518, 65589608

Stainless Steel, Vertical Hold Down, U shaped clamping bar, Flanged base. Overall Height 5.56 In, Overall Length 4.60 In, Height Under Arm 1.25 In.

Part No: LT-451SS
Holding Capacity: 375 lbs
Cross Referenced: 351-SS, CL-250-PA-S, 5136A12, 77863793, 06966972

Stainless Steel, Latch clamp with a hook for grasping a rod or rim. Drawing Movement 4.00 In.

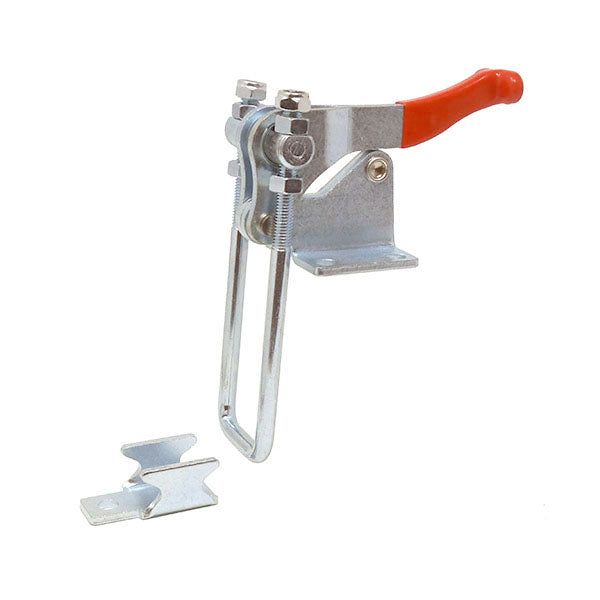

Part No: LT-40344SS
Holding Capacity: 2000 lbs
Cross Referenced: 344-SS, CL-310-PA-S, 5135A37

Stainless Steel, Latch clamp with a threaded U bolt for adjustability. Drawing Movement 1.50 In.

Part No: LT-40334SS
Holding Capacity: 1000 lbs
Cross Referenced: 334-SS, CL-210-PA-S, 5135A35, 77863751, 06966782

Stainless Steel, Latch clamp with a threaded U bolt for adjustability. Drawing Movement 2.06 In.

Part No: LT-40324SS
Holding Capacity: 500 lbs
Cross Referenced: 324-SS, CL-110-PA-S, 5135A33, 77863710, 06966725

Stainless Steel, Latch clamp with a threaded U bolt for adjustability. Drawing Movement 1.50 In.

Part No: LT-40323SS
Holding Capacity: 360 lbs
Cross Referenced: 323-SS, CL-100-PA-S, 5071A57, 77863702, 06966733

Stainless Steel, Miniature Latch clamp with a threaded U bolt for adjustability. Drawing Movement 1.19 In.

Part No: PP-36204SS
Holding Capacity: 300 lbs
Cross Referenced: 604-SS, CL-250-TPC-S, 5093A69, 75135129, 06966212

Stainless Steel, Compact plunger clamp for mounting through panels, plates, or angle brackets. Overall Height 4.06 In, Overall Length 4.53 In, Plunger Travel 1.50 In.

Part No: PP-36202SS
Holding Capacity: 200 lbs
Cross Referenced: 602-SS, CL-150-TPC-S, 5093A72, 73953135, 06966170

Stainless Steel, Compact plunger clamp for mounting through panels, plates, or angle brackets. Overall Height 2.97 In, Overall Length 2.48 In, Plunger Travel 0.75 In.

Part No: HH-201BSS
Holding Capacity: 200 lbs
Cross Referenced: 215-USS, CL-350-HTC-S, 5128A46, 73952673, 76988427

Stainless Steel, Medium duty hold down clamp, U shaped clamping bar, Flanged base. Overall Height 1.50 In, Overall Length 5.50 In, Height Under Arm 1.00 In.

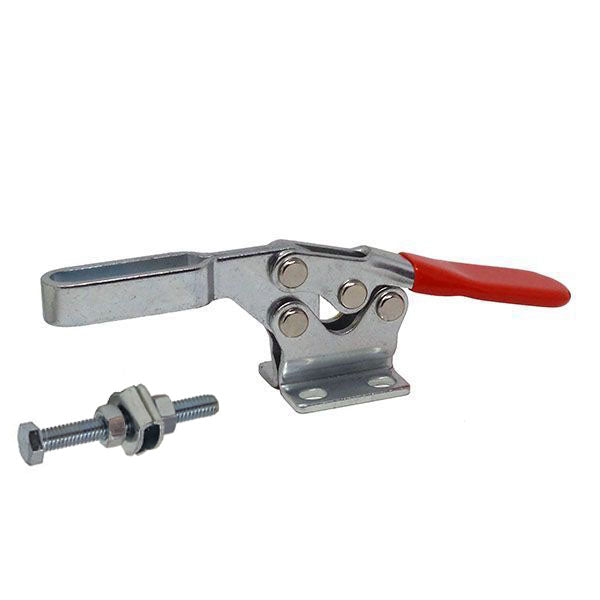

Part No: HH-225DSS
Holding Capacity: 500 lbs
Cross Referenced: 225-USS, CL-450-HTC-S, 5128A54, 73952707, 76988641

Stainless Steel, Horizontal Hold Down, U shaped clamping bar, Flanged base. Overall Height 1.87 In, Overall Length 6.60 In, Height Under Arm 1.37 In.

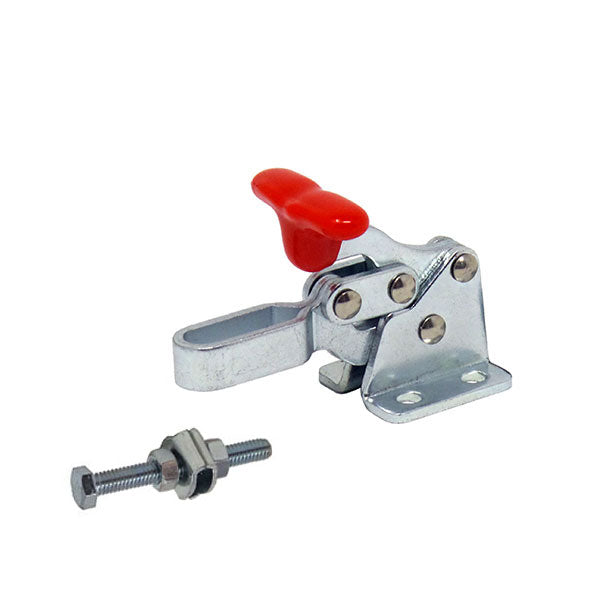

Part No: VH-13005SS
Holding Capacity: 150 lbs
Cross Referenced: 305-USS, CL-200-VTC-S, 5004A13, 73953200, 08096356

Stainless Steel, Unique finger grip T handle, Extremely compact design, U shaped clamping bar, Flanged base. Overall Height 1.40 In, Overall Length 2.26 In, Height Under Arm 0.52 In.
